Drum Handler
Nandan is leading manufacturer & exporter of state-of-the-art equipment for handling, lifting, weighing, transporting and dispensing of drums and barrels, extensively used in chemical and petroleum and shipping industries. We are provided with Fully electric and Electric Drum stackers also.
Product Details
Nandan Manufactures Drum Handler used to handle and move drums of all types. The mechanical arms are custom designed for a tight and secure grip.
It is designed to improve the efficiency of your operation and includes a host of built-in safety features to perform smooth operation.
Salient Features
- Lifting of drum can be made by Manual operated Hydraulic Systems
- Can be used in loading & unloading the Drums in the truck
- Can stack the Drums vertically or horizontally one over the other
- Can carry Drums to long distance
- Can handle steel & Plastic Drums
- Ultimate solution for quick, safe & fast Drum Handling in warehouses & plants
Application Areas
- Chemical, Petroleum and Shipping industries
Specifications

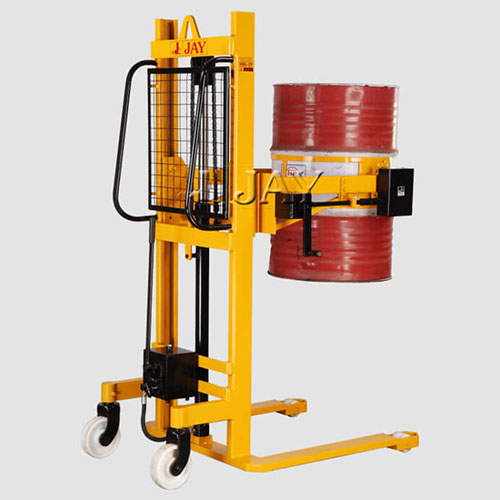

Drum Stacker
| Model | NE-D-MST-0.4/1.4 | NE-D-SEST-0.5/1.5 | NE-D-SEST-0.52/1.5 | NE-D-SEST-0.4/2.3 | |
|---|---|---|---|---|---|
| Load Capacity | kg | 450 | 520 | 520 | 450 |
| Net Weight | kg | 176 | 273 | 269 | 343 |
| Lifting Height | mm | 1430 | 1500 | 1500 | 2300 |
| Inner/Outer Width of Front Support legs | mm | 650/810 | 640/800 | 640/800 | 630/810 |
| Overall Size | mm | 1400*1000*2030 | 1400*980*2080 | 1400*950*2060 | 1600*950*1920 |
| Wheel Dimension (Front/Rear) | mm | ⌀80*55/⌀150*50 | ⌀80*55/⌀150*50 | ⌀80*55/⌀150*50 | ⌀80*55/⌀150*50 |
| Turning Radius | mm | – | 1620 | 1620 | 1620 |
| Pump Unit Power | KW/h | N.A. | 1.6 | 1.6 | 1.6 |
| Battery Parameter | Ah/V | N.A. | 120/12 | 120/12 | 120/12 |
| Lifting Speed | mm/s | N.A. | 120 | 120 | 120 |
| Max. Gradability (Fully Loaded/No-Loaded) | % | – | – | – | 3/5 |

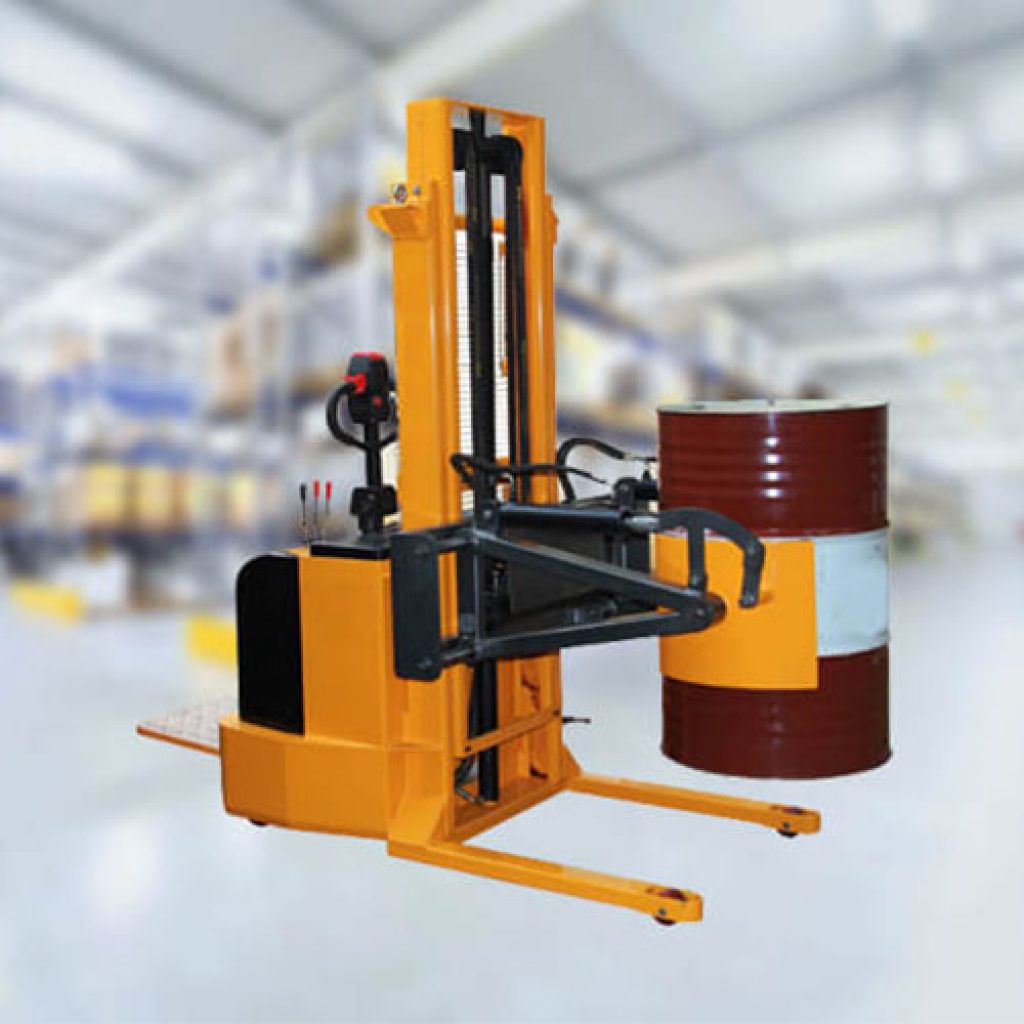

Drum Fully Electric Stacker
| Model | NE-D-FEST-0.6/2.4 | NE-D-FEST-0.4/2.4 | |
|---|---|---|---|
| Drive Type | Full Electric | Electric | |
| Operating Type | Standing Steer Type | Standing Steer Type | |
| Load Capacity | kg | 600 | 420 |
| Net Weight | kg | 680 | 1050 |
| Lifting Height | mm | 2400 | 2400 |
| Wheel Dimension (Front/Rear) | mm | ⌀250*80 | ⌀250*80 |
| Turning Radius | mm | 1910 | 2150 |
| Max. Gradability (Fully Loaded/No-Loaded) | % | 3/5 | 3/5 |
| Tyre | Polyurethane | Polyurethane | |
| Controlling Type | Electromagnetic Braking | Electromagnetic Braking | |
| Drive Motor Power | kw | 1.2 | 1.2 |
| Lifting Motor Power | kw | 2.2 | 2.2 |
| Noise Level | db(A) | <70 | <70 |
| Battery Voltage | V/Ah | 24/210 | 24/210 |
| Charger | V/A | 24/30 | 24/30 |
| Rotating Range | ° | 360 | 135 |
