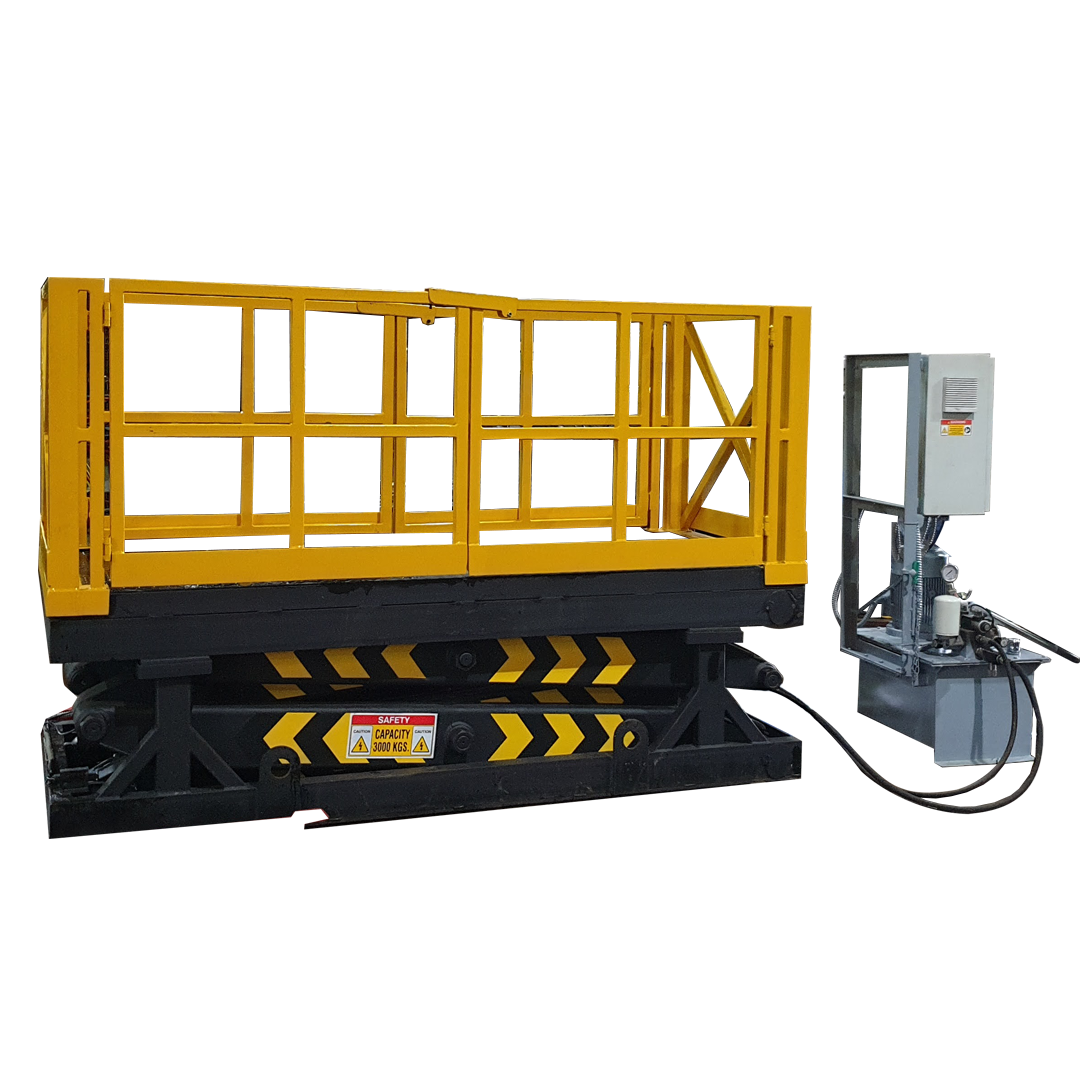

Double Scissor Lift
NANDAN’s Double Scissor Lift is equipped with a combination of two pairs of scissors to obtain the desired lift range and length to perform the operation. Designed for lifting 500Kg to 30tons at height up to 13m with a large base.
To handle goods that are both heavy and to be reach at specific height you require a lift with special properties, NANDAN’s Double Scissor Lift is equipped with a combination of two pairs of scissors to obtain the desired lift range and length to perform the operation, It provides an innovative and cost effective solution for situations where a higher lift height is required. The lifts are typically pit mounted and can be customized for your application.
The Double Scissor Lift is useful for accessing height up to 13m with a large base. The double pantograph mechanism ensures that the movement of the platform will be parallel to the ground. In addition the mounting of the cylinders and system is configured in such a way to make it maintenance free. The advantage of the powerpack to be kept at a distance of around 4m away from the lift offers a flexibility that the conventional lift systems cannot offer.
Double Scissor lifts are used in a variety of applications & can be customized as per your requirement.
Salient Features
- Scissor lifts can be mounted in a pit or a concrete pad
- Max ton Capacity 30 ton
- Suitable for heights from 200mm to 13m
- Platform length from 900mm to 5000mm in standard model
- Hydraulic Operated by electric power pack
- Guides provided at the side of or preventive sway
- High quality design
- Easy to install and maintain
- Lubricant free MUSTUF or MU bushes are used along with chrome plated pins
- Safety spacing between all moving parts
Applications
- Engineering /Pharma /Transport companies, Warehouse, Car Lifting, Goods Lifts, Process Equipment etc
Ajay Decorative Laminates PVT. LTD. are one of the leading manufacturers of of PVC laminated aluminium & galvanized sheets in the country.
Nandan GSE was approached by Ajay Decorative to give a one stop solution for their load lifting woes. They needed to transport the heavy sheets of laminates after being unloaded from a truck from ground level to the first floor level.
