Stacker

Nandan offers Electric Stacker ideal for congested and compact work areas. Perfect for all types of lifting or positioning work within the factories and warehouse.

Detailed Specs

Manual Stacker

Model No. NE-MS-1/1.6NE-MS-1.5/1.6NE-MS-2/1.6NE-MS-1/2NE-MS-1/2.5NE-MS-1/3
Capacitykg100015002000100010001000
Load Centremm600600600600600600
Lifting Heightmm160016001600200025003000
Overall Mast Heightmm197019702120152017702020
Mast Type SingleSingleSingleDoubleDoubleDouble
Lowered Height of Forkmm909090909090
Fork Outer Distacnemm560560560560560560
Fork Lengthmm115011501150115011501150
Overall Widthmm760760760760760760
Overall Lengthmm165016501650165016501650
Turning Radiusmm160016001600160016001600
Wheel (Drive / Load) Type PU / NylonPU / NylonPU / NylonPU / NylonPU / NylonPU / Nylon
Size of Steering Wheelmm⌀180*50⌀180*50⌀180*50⌀180*50⌀180*50⌀180*50
Size of Loading Wheelmm⌀80*50⌀80*50⌀80*50⌀80*50⌀80*50⌀80*5
SEMI ELECTRIC STACKER
Model No. NE-SEST-1/1.6NE-SEST-1.5/1.6NE-SEST-2/1.6NE-SEST-1/2NE-SEST-2/2NE-SEST-1/2.5NE-SEST-1.5/2.5NE-SEST-2/2.5
Capacitykg10001500200010002000100015002000
Load Centermm500500500500500500500500
Lifting Heightmm16001600160020002000250025002500
Lowered Height of Forkmm8585858585858585
Fork Lengthmm11501150115011501150115011501150
Fork Sizemm54*16054*16054*16054*16054*16054*16054*16054*160
Fork Widthmm680680680680680680680680
Turing Radiusmm13261326132613261326132613261326
Mast Extend Heightmm21652165216525322532303230323032
Mast Lower Heightmm21652165216515651565181518151815
Overall Widthmm904904904904904904904904
Overall Length (1150mm fork length)mm16731673167316731673167316731673
Minimum Ground Clearancemm8484848484848484
Lifting Speed (unloden/laden)mm/s230/130230/130230/130230/130230/130230/130230/130230/130
Lowering speed (Unloden/Laden)mm/s400/500400/500400/500400/500400/500400/500400/500400/500
Lifting Motorv/kw12/1.612/1.612/1.612/1.612/1.612/1.612/1.612/1.6
Battery Capacityv/ah12/12012/12012/12012/12012/12012/12012/12012/120
Chargerv/a12/1512/1512/1512/1512/1512/1512/1512/15
Weightkg285310335345395365390415

ECONOMY ELECTRIC STACKER

Model No. NE-EST-1/1.6NE-EST-1.5/1.6NE-EST-2/1.6NE-EST-1/2NE-EST-2/2NE-EST-1/2.5NE-EST-1.5/2.5NE-EST-2/2.5
Capacitykg10001500200010002000100015002000
Load Centermm500500500500500500500500
Lifting Heightmm16001600160020002000250025002500
Lowered Height of Forkmm8585858585858585
Fork Lengthmm11501150115011501150115011501150
Fork Sizemm54*16054*16054*16054*16054*16054*16054*16054*160
Fork Widthmm680680680680680680680680
Turing Radiusmm13261326132613261326132613261326
Mast Extend Heightmm21652165216525322532303230323032
Mast Lower Heightmm21652165216515651565181518151815
Overall Widthmm904904904904904904904904
Overall Length (1150mm fork length)mm16731673167316731673167316731673
Minimum Ground Clearancemm8484848484848484
Lifting Speed (unloden/laden)mm/s230/130230/130230/130230/130230/130230/130230/130230/130
Lowering speed (Unloden/Laden)mm/s400/500400/500400/500400/500400/500400/500400/500400/500
Lifting Motorv/kw12/1.612/1.612/1.612/1.612/1.612/1.612/1.612/1.6
Battery Capacityv/ah12/12012/12012/12012/12012/12012/12012/12012/120
Chargerv/a12/1512/1512/1512/1512/1512/1512/1512/15
Weightkg285310335345395365390415

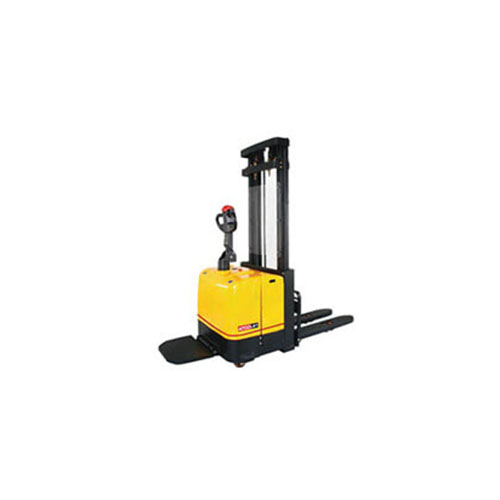

HEAVY DUTY ELECTRIC STACKER

Model NE-HEST-1.2/3NE-HEST-1.2/3NE-HEST-1.5/4.5NE-HEST-1.5/4.5NE-HEST-1.5/4.5NE-HEST-1.5/4.5NE-HEST-2/4.5
Mast Type DuplexDuplexTriplexTriplexTriplexTriplexTriplex
Mast profile H modelH modelH modelH modelH modelH modelH model
Type of drive Full ElectricFull ElectricFull ElectricFull ElectricFull ElectricFull ElectricFull Electric
Operator type RiderRiderRiderRiderRiderRiderRider
Capacitykg1200120015001500150015002000
Load centermm600600600600600600600
Wheel basemm1380138013951395139513951395
Electric power steering(EPS) OptionalOptionalOptionalOptionalOptionalOptionalOptional
Service weight without batterykg7207201170117011701170920
Service weight with batterykg930115013801405143514651480
wheel type PUPUPUPUPUPUPU
Size of front wheelsmm¢ 78¢ 78¢ 78¢ 78¢ 78¢ 78¢ 78
Size of rear wheelsmm¢ 124¢ 124¢ 124¢ 124¢ 124¢ 124¢ 124
Size of drive wheelsmm¢ 230¢ 230¢ 230¢ 230¢ 230¢ 230¢ 230
Wheels quantitypcs1/2/20041/2/20041/2/20041/2/20041/2/20041/2/20041/2/2004
Mast lower height 2045229520752245244526452745
Mast extend heightmm3540404050965595609565956895
Overall length (with platform)mm2540254025902590259025902607
Overall length (without platform)mm2000200020502050205020502067
Rear body widthmm800800800/850
(h3 ≥5000mm
:850mm)
800/850
(h3 ≥5000mm
:850mm)
800/850
(h3 ≥5000mm
:850mm)
800/850
(h3 ≥5000mm
:850mm)
850
Rear body lengthmm585585585585585585585
Overall widthmm800800940
(h3 ≥5000mm
:990mm)
940
(h3 ≥5000mm
:990mm)
940
(h3 ≥5000mm
:990mm)
940
(h3 ≥5000mm
:990mm)
990
(h4 ≥5000mm
:1100mm)

Height of tiller arm in drive position min./max.mm1030-12001030-12001030-12001030-12001030-12001030-12001030-1200
Rear body heightmm830830830830830830830
Clearancemm40404040404040
Fork lengthmm1150115011501150115011501150
Overall fork widthmm540/560/580/680
Min.Turning radius
(with platform)
mm2090209021022102210221022100
Min.Turning radius
(without platform)
mm1565156515781578157815781580
Lowered height of forkmm90909090909090
Fork widthmm170170170170170170185
Lifting heightmm3000300045004500450045004500
Freelift heightmmN.A.N.A15501715191621162216
Aisle width (800*1200mm pallet): horizontal/vertical (with platform)mm2924292429662966296629662991
Aisle width (800*1200mm pallet): horizontal/vertical (without platform)mm2399239924422442244224422471
Aisle width (1000*1200mm pallet): horizontal/vertical (with platform)mm2994299430303030303030303053
Aisle width (1000*1200mm pallet): horizontal/vertical (without platform)mm2469246925062506250625062533
Travel speed, Laden/Unladenkm/h5/5.35/5.35/5.35/5.35/5.35/5.35/5.3
Lift speed, Laden/Unladenmm/s58/15858/15858/15858/15858/15858/15858/158
lower speed, Laden/Unladenmm/s145/80145/80145/80145/80145/80145/80145/80
Gradeability, Laden/Unladen%5/75/75/75/75/75/75/7
Brake type electromagneticelectromagneticelectromagneticelectromagneticelectromagneticelectromagneticelectromagnetic
Drive motorkw1.5(vertical motor +EPS)1.5(vertical motor +EPS)1.5(vertical motor +EPS)1.5(vertical motor +EPS)1.5(vertical motor +EPS)1.5(vertical motor +EPS)
1.5(vertical motor +EPS)

Lift motorkw3333333
Battery voltage/capacityV/Ah24V 210Ah24V 210Ah24V 210Ah24V 210Ah24V 210Ah24V 210Ah24V 210Ah
Battery weightkg210210210210210210210
battery sizemm790×210×576790×210×576790×210×576790×210×576790×210×576790×210×576790×210×576
control system 1230-2402(CURTIS)1230-2402(CURTIS)1230-2402(CURTIS)1230-2402(CURTIS)1230-2402(CURTIS)1230-2402(CURTIS)1230-2402(CURTIS)
